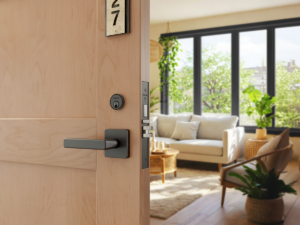

Purpose-built to serve the commercial real estate, retail, multifamily and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a competitive price point. The Schlage PM Series features 26 functions, including three electrified options and four mortise deadbolt configurations, all made to meet Schlage’s high standards. With a variety of popular levers and finishes, along with a comprehensive key system, these durable locks cater to both security and aesthetic desires. Seamlessly integrating with other Allegion products, the PM Series provides a cohesive door hardware solution, ensuring a consistent user experience throughout your property. Pair the PM Series mortise locks with the PT Series tubular locks, as they share lever and rose styles for a more cohesive design.

FEATURES & BENEFITS:

Security

• Certified to ANSI/BHMA Grade 1 operational and security standards
• UL listed for 3-hour fire door
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Lock status options include request to exit (RX) and latchbolt (LX) monitoring (availability varies by function)
• Patented Everest 29™ S123 keyway provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Extensive cylinder support for Schlage and 7 non-Schlage formats

Aesthetics

• 10 lever styles constructed of zinc offer a solid-yet-comfortable feel
• Performance Series exclusive levers (Selena and Playa) and D square rose are shared with the PT Series™ tubular lock
• Additional style options include two roses, and one escutcheon
• Six available finishes across all lever and trims
• Specialized options include one-sided, 180-degree sectional visual indication trim available on 16 functions
• Lock status indication for sectional trims (available on most functions) uses red and white backgrounds to ensure quick readability for color blind individuals
• All levers suite with Performance Series tubular locks, eight levers suite with Schlage’s broader offering (L, ND, ALX, and PC Series), as well as Von Duprin exit devices

Functions

• 12 keyed, seven non-keyed, and four deadbolt-only functions
• See PM Series electrified web page for lever control mortise lock function details

Built to Perform

• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
• 5-year mechanical warranty, 2-year electromechanical

FUNCTIONS:

All functions available with 180-degree visibility, single-sided indicator sectional trim options are marked (*).

Non-keyed functions

• PM010 Passage latch (ANSI F01)
• PM040 Bath/bedroom privacy lock (ANSI F22) (*)
• PM044 Privacy with coin turn outside (*)
• PM440 Privacy with deadbolt (ANSI F19) (*)
• PM444 Privacy with deadbolt and coin turn outside (*)

Non-keyed dummy functions

• PM175 Half dummy trim with lock case
• PM176 Full dummy trim with lock case

Keyed non-deadbolt functions

Single cylinder

• PM026 Exit lock with cylinder
• PM050 Entrance/office lock (ANSI F04) (*)
• PM056 Entrance/office lock with automatic unlocking (*)
• PM080 Storeroom lock (ANSI F07)
• PM081 Accessible storeroom lock

Double cylinder

• PM060 Apartment entrance lock (ANSI F09) (*)
• PM071 Classroom security lock (ANSI F32) (*)

Keyed deadbolt functions

Single cylinder

• PM453 Entrance/office lock with Deadbolt (ANSI F20)
• PM480 Storeroom lock with deadbolt (*)
• PM456 Corridor lock with deadbolt (ANSI F13) (*)
• PM485 Faculty/hotel restroom lock with deadbolt (*)

Double cylinder

• PM457 Classroom Security Lock with Deadbolt (*)

Mortise deadbolt-only functions

• PM460 Cylinder x Thumbturn Mortise Deadbolt (*)
• PM462 Double Cylinder Mortise Deadbolt (*)
• PM463 Cylinder x Cylinder Thumbturn Mortise Deadbolt (*)
• PM464 Cylinder Only Mortise Deadbolt (*)

SPECIFICATIONS:

Chassis

• Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
• Case size: 4-7/16″ x 6-1/16″ x 1″ (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ. View PM templates here.
• Spacing: lever to cylinder 3-7/8″ (98 mm); lever to thumbturn hub 2-11/16″ (68 mm)
• Door thickness: 1-3/4″ (44 mm) standard; 1-3/8″ (35 mm) minimum; fits doors up to 2-1/2″ thick – specify door thickness if over 1-3/4″ and position in door (Available EE only)
• Field reversible handing

Trim Options

• 10 lever designs made of zinc
• N escutcheons: 7-7⁄8” x 2-1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); wrought brass
• Roses: A 2-1/8″ (54 mm), B 2-9/16″ (65 mm), C 2-5/8″ (67 mm) – brass
• Thumbturn style is ADA qualified

Latches, Armors, Strikes

• Backset: 2-3/4″ (70 mm) only
• Armor: Standard – 1-1⁄4″ x 8″ x 7⁄32″ (32 mm x 203 mm x 6 mm); Optional – 1-1⁄16″ x 8″ x 7⁄32″ (27 mm x 203 mm x 6 mm)
• Deadbolt: 1″ (25 mm) throw stainless steel
• Latch: 3⁄4″ (19 mm) throw stainless steel with anti-friction tongue
• Strike: ANSI curved lip strike 1-1⁄4″ x 4-7⁄8″ (32 mm x 124 mm) standard; dust box included
• Strike lip length: 1-3⁄16″ (30 mm); optional strike lip lengths – 7⁄8″, 1″, 1-1⁄2″, 1-3⁄4″, and 2″

CERTIFICATIONS:

ANSI/BHMA

• ANSI/BHMA A156.13-2017 Series 1000, Grade 1 operational and security
• With FSIC interchangeable core cylinders: Grade 1 operational, Grade 2 security
• With SFIC interchangeable core cylinders: Grade 1 operational, Grade 3 security

ADA Compliant

• Complies with ICC A117.1 Accessible and Usable Buildings and Facilities

UL/cUL

• UL 10C and CAN/ULC-S104 listed 3-hour fire door
  • oA label single doors, 4′ x 10′ and pairs 8′ x 10′
  • oLetter F and UL symbol on latch front indicate listing
• UL 437 listed when using Primus high-security UL 437 cylinder

FINISHES:

Mortise lock and cylinder front housing finishes

• 613 Oil rubbed bronze
• 619 Satin nickle
• 622 Matte black
• 625 Bright chrome
• 626 Satin chrome
• 643e Aged bronze (simulated equivalent)

Key cylinder, plug and core face finishes

• 522 Bronze (simulated equivalent)
• 622 Matte black
• 626 Satin chrome

KEYING OPTIONS:

Open keyways upgradeable to Primus RP

• Schlage Classic Obverse open keyways, including Schlage C
• Classic Obverse keyways gain patent protection and restricted, geographic exclusivity in a Primus RP cylinder
• Available in Conventional and FSIC cylinder formats

Patented keyways upgradeable to Primus XP

• Everest 29™ S keyways include S123 (default keyway)
• Everest 29™ T restricted keyways
• Everest 29™ R restricted keyways as SL cylinders in conventional or FSIC formats with the same A2 pinning style of an
• Everest 29™ keyways gain restricted, geographic exclusivity in a Primus XP cylinder
• Available in Conventional and FSIC cylinder formats

Small Format Interchangeable Cores (SFIC)

• Everest 29™ R restricted keyway family

Master Keying

• Factory master keying available
• Key System Management
