Sargent SE LP10 Series

Sargent SE LP10 Series

The SE LP10 is ideal for mixed credential environments and enables easy migration to higher security credentials and mobile access.  Featuring Integrated Wiegand access control in a streamlined design, the SE LP 10 combines ease-of-use with the heightened security, monitoring and flexibility of multiCLASS SE® technology from HID Global®. Ideal for mixed credential environments, SE LP 10 locks enable easy migration to higher security credentials and mobile access.

The SARGENT SE LP10 series locks are available in cylindrical, mortise, multi-point and exit device configurations.

OVERVIEW

Reduces installation time while maintaining architectural integrity

Simplifies set-up with only one required cable

Integrates easily with all popular access control systems

Features & Benefits

multiCLASS SE® Technology from HID Global®

  • Supports:

– Multiple credential technologies, offering easy migration to higher security credentials or consolidation of mixed credentials

– HID Mobile Access® powered by Seos®, for both iOS® and Android™ devices

Open architecture platform

  • Compatibility with all popular access control systems

Integrated design incorporates all access control components, including card reader, door position switch, and request to exit monitoring sensors

  • Significantly reduces installation time

Intelligent power management

  • Reduces reader power consumption by as much as 75%

Integrated ANSI/BHMA Grade 1 hardware, available in cylindrical lock, mortise lock, multi-point lock, and exit device configurations

  • Industry leading Grade 1 hardware offers the highest degree of physical security available in access control locks; flexibility to support a variety of openings

Direct Wiegand output

  • Eliminates the need for an interface panel

Lockdown capable

  • Ability to secure areas immediately from central security system

Provided with pre-terminated ElectroLynx® connectors

  • Reduced installation time and costs; improved reliability

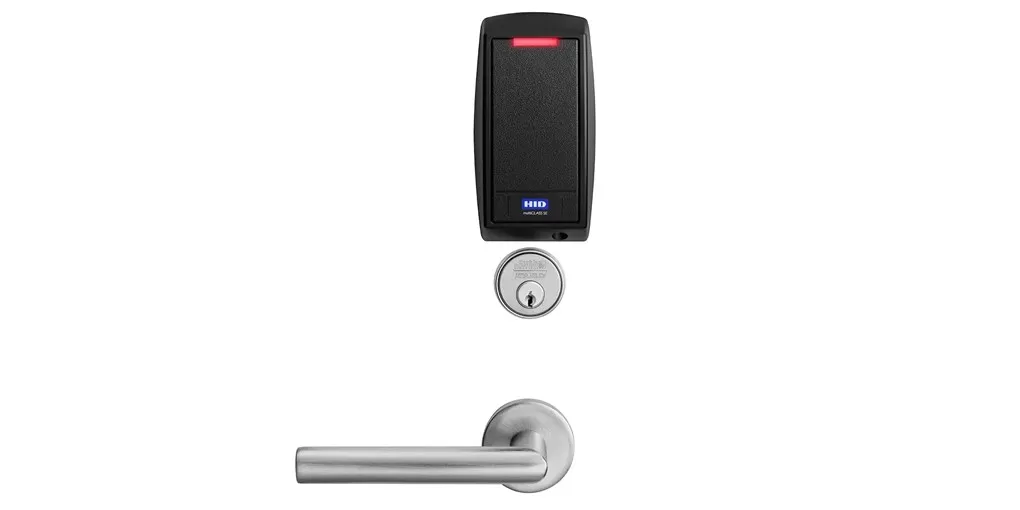

Reader housing available in two colors: two-tone gray (pictured) or all black

  • Flexibility to match the look of your facility

Mortise locks feature EcoFlex® technology

  • Reduces energy consumption up to 96%, as certified by GreenCircle
  • Field configurable to fail-safe or fail-secure
  • Operates from 12-24VDC, offering greater flexibility in system design
  • Innovative actuator design provides superior reliability.
