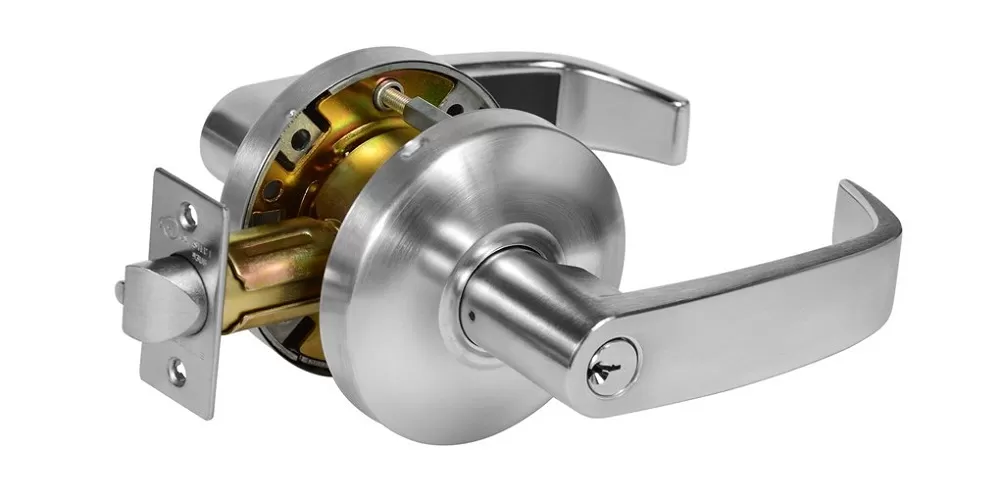

Designed for increased usability, the 6500 Line standard duty key-in-lever lock exceeds ANSI/BHMA Grade 2 standards. It installs easily and is available in three lever styles, eight functions, and six different finishes to match existing facility aesthetics.

For Doors: 1-3/8″ (35mm) to 1-3/4″ (44mm) only
Backset: 2-3/4″ (70mm) standard 2-3/8″ (60mm) optional (20- option)
Cylindrical Housing: Steel zinc dichromate finish
Front: Wrought brass and stainless steel 2-1/4″ (57mm) x 1-1/8″ (29mm)
Strike: 800 Curved Lip, Brass or Stainless Steel Standard 808 ANSI Curved Lip available (28- option) 505 Full Lip strike available (14- option)
Hand: Universal, non-handed
Latch: Brass 1/2″ (13mm) throw
