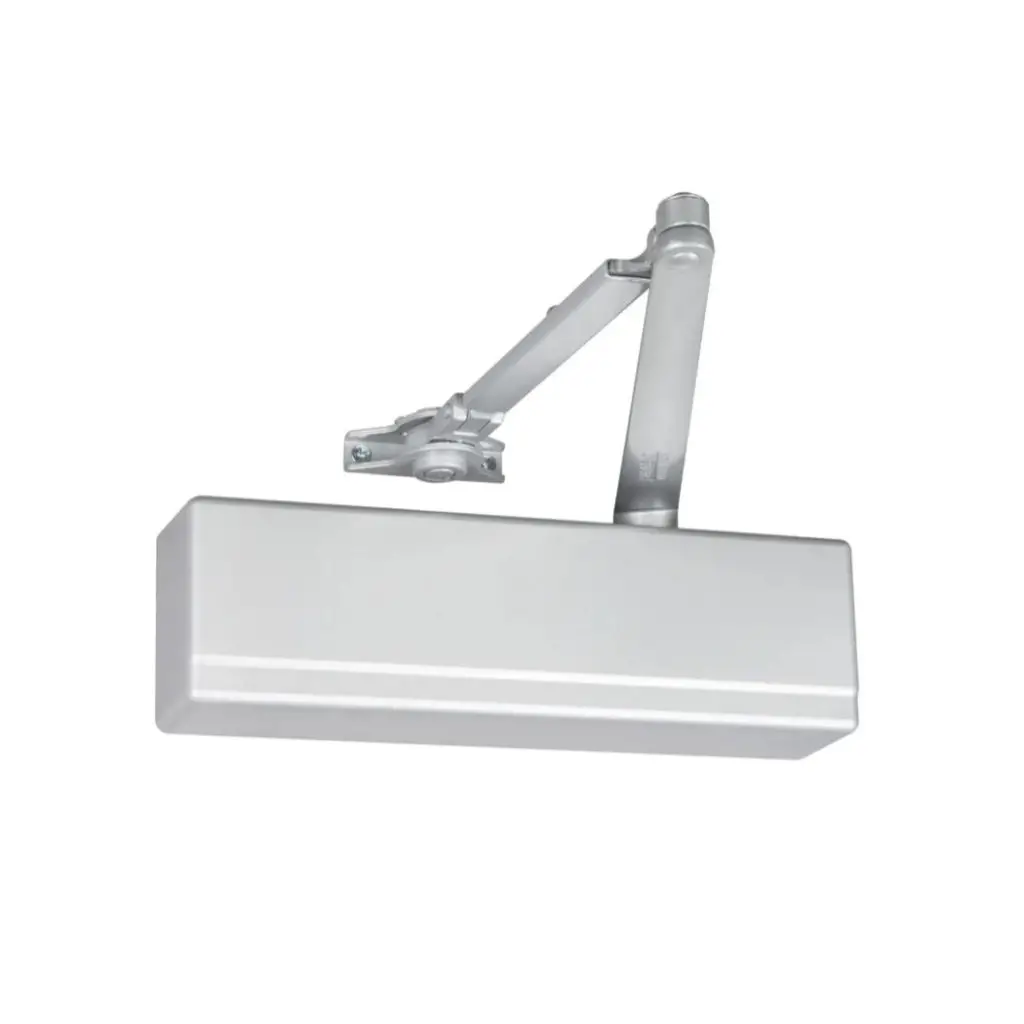

SARGENT’s 351 Series Powerglide® Door Closer features heavy-duty construction for superior strength and wear resistance. It is ideally suited for highly trafficked environments like schools, healthcare facilities, office buildings, and commercial buildings. With a full complement of arm types and front-facing valves, this door closer can be easily installed and maintained—for interior and exterior applications.

FEATURES:

• Certified ANSI/BHMA A156.4 Grade 1
• UL 10C listed for positive pressure fire test
• UL /cUL listed
• 30-year limited warranty
• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
• Self sticking templates supplied for most applications
• Adjustable spring power allows 351 closers in a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
• One door closer body for all applications. All 351 are non-handed
• Meets ADA requirements in all applications, except Push Side Track application (except track)
• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional
• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment
• 1-1/2″ diameter piston for superior door control
• Standard pressure relief valves for both opening and closing cycles protect the door & frame from damage caused by abuse

BENEFITS:

• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment
• 1-1/2″ diameter piston for superior door control
• Standard pressure relief valves protect the door & frame from damage caused by abuse
• All valves are controlled by an 1/8″ allen wrench to discourage tampering and are captivated to prevent removing valves from the body and damaging the door closer
• Heat treated full closed rack and pinion provide control from the full open position
• Heavy duty one piece die cast aluminum silicon alloy body with 14% silicon provides superior strength and wear resistance
• Heavy duty forged steel arms are finely finished and interchangeable between SARGENT 351, 1431 and 281 Series

SPECIFICATIONS:

• Arm Material: Forged steel
• Body Material: Die cast aluminum
• Closer Type: Surface
• Minimum Hold Open Degree: 120°
• Maximum Hold Open Degree: 180°
• Warranty: 30-year limited warranty

CERTIFICATIONS:

• ANSI/BHMA A156.4, Grade 1
• Americans with Disabilities Act (ADA) Compliant
• ICC A117.1 Compliant
• UL-cUL Fire-Rated Up to 3 Hours
