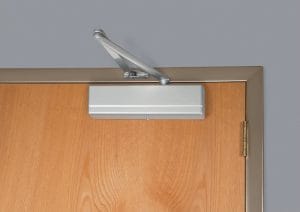

The SARGENT 1431 Series Powerglide® Door Closer features heavy-duty construction for superior strength and wear resistance. It is ideally suited for highly trafficked environments like schools, healthcare facilities, office buildings, and commercial buildings. With a full complement of arm types and front-facing valves, the SARGENT 1431 Series Powerglide® door closer can be easily installed and maintained—for interior and exterior applications.

FEATURES:

• Exceeds 15 Million cycles
• Certified ANSI/BHMA A156.4 Grade 1
• UL10C positive pressure up to 3 hours
• UL-cUL listed
• 30-year limited warranty
• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
• Self sticking templates supplied for most applications
• Adjustable spring power allows 1431 closers in a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
• One door closer body for all applications. All 1431 are non-handed
• Meets ADA requirements in all applications, except Push Side Track application (except track)
• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional
• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment
• 1-1/2″ diameter piston for superior door control
• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse
• Retrofits existing SARGENT 1230/1231 Series Closer installations

BENEFITS:

• Heavy duty one piece high silicon content aluminum alloy body provides corrosion resistance, superior strength and wear resistance
• Heat treated full rack and pinion for high strength and wear resistance
• Stringent testing supports a long-life of reliability
• Heavy duty forged steel arms are finely finished and interchangeable between SARGENT 281 and 1431 and 351 Series
• All valves are captured to prevent accidental removal
• Adjustable backcheck protects the door and hardware from damage during the opening cycle
• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse

SPECIFICATIONS:

• Arm Material: Forged steel
• Body Material: Aluminum alloy
• Closer Type: Surface
• Warranty: 30-year limited warranty

CERTIFICATIONS:

• ANSI/BHMA A156.4, Grade 1
• Americans with Disabilities Act (ADA) Compliant
• ICC A117.1 Compliant
• UL-cUL Fire-Rated Up to 3 Hours
