APPLICATIONS
Perfect for libraries, hospitals, assisted living facilities, health care, education k–8, 9–12, military offices and housing, government buildings and offices, multi family housing.
Specify for use with all types of interior and exterior doors—wood doors, metal doors, aluminum and glass doors, any door that requires low-energy door automation.
FEATURES
- Can be used for interior or exterior applications
- SimpleLynk communications display allows the installer to properly set-up and program the door
- Simple to install and program
- Available for single, pairs or double egress doors
- Available in clear or dark bronze anodized finishes
- Push to start applications eliminate the need for additional activation accessories and complex wiring
- Latch assist function assures closing in areas with heavy stack conditions
- Interfaces with electric strikes without additional relays or delays
- Breakaway adapter to prevent operator or arm damage when abused
- Various arm options
- Opening Force <15lbs
- Opening Force <8lbs
- Adjustable opening speeds
- Non Handed
- Push or pull operation
- High frequency use
- Complies wih ANSI 156.19
- Electro-mechanical
- Surface applied
- Full length header
- Auto-reverse
- Obstruction stop
- Stack pressure feature
- Microprocessor controlled
- Adjustable latch check speed
- Programmable controls
- Positive stop
- Built In electric strike interface
- Built In interface for presence sensor
- Meets UL325, UL228
- Self diagnostic
- *Manufacturer’s note: Consult factory for proper application.
- *700 lbs on 24” wide door. 400 lb limit on doors 48” wide
ADDITIONAL FEATURES
- Doors that require up to 120° door swing
- Swing clear doors
- ADA applications
- 24V @ .05 amps power supply to power most magnets and electric strikes
- Various arm options available
- One piece header across opening
SPECIFICATION

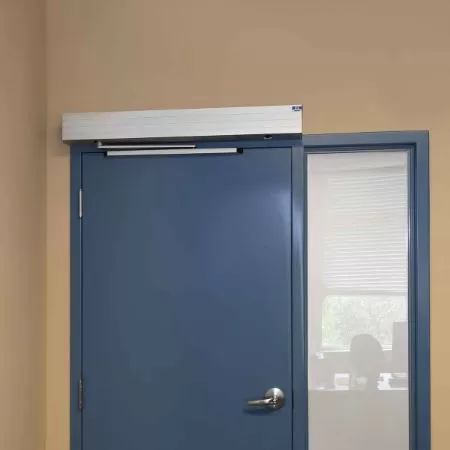

The Low energy Door operator shall be a record-usa SimpleSwing. The SimpleSwing is an ADA Electromechanical door operator that powers open or close doors under the requirements of ANSI 156.19. Operators can be surface applied to either the push or pull side.
The door operator shall be housed in a clear aluminum or dark bronze header matching the width of the doorframe. The low energy door operator shall contain a breakaway arm adapter that protects the unit(s) from damage.
The SimpleSwing shall be field programmable by the user and installer through a LCD display interface. The SimpleSwing shall be supplied with a non-handed field reversible door operator, Universal push arm, a breakaway adapter and 1–3 year warranty.
TECHNICAL DATA
- Header width dimensions: 4.5” x 5”
- Motor: 1/8hp (SD) and 1/4hp (HD)
- Max door weights: 175lbs (SD), 400lbs (HD)
- Opening angle with track arm: 90 degrees
- Opening angle with standard arm: 120 degrees
- Electrical requirements: 120 VAC @ 15amps 60hz
- Power Supply: 24V AC/DC @.5amp for magnets, electric strikes ANSI/BHMA 156.19 UL325/UL228
- Operating Conditions: -40°F and +140°F
