Features:

• Maximum size for single door opening (non-rated) is 4’0″ x 10’0″ (1219mm x 3048mm), double egrees double opening 8’0″ x 10’0″ (2438mm x 3048mm) Maximum size for single door opening and door/transom (20 Min. fire rated) is 4’0″ x 10’0″ (1219mm x 3048mm), double opening (dependent on hardware) 8’0″ x 10’0″ (2438mm x 3048mm)
• For 1 3/8″ (35mm, non-rated only), or 1 3/4″ (44mm, rated and non-rated) door thicknesses

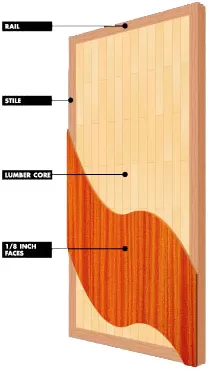

• Stiles consist of clear or fingerjointed
• Rails consist of mill option wood, hardwood rails compatible with face veneer available upon request
• Pregraded faces, hardboard, or premium 2-, 3-, or 4-ply veneered skins (minimum 1/60″ veneer before sanding).  Veneers available in a wide variety of species and cuts
• Complete range of machining capabilities and detailing available
• Special inner blocking options may be specified for hardware reinforcement or light cutouts
• Cutout area may not exceed 40% of the face or half of the door height to comply with the warranty. For 20 minute-rated doors, the total visible area of single or multiple lights may not exceed 1,296 sq. in. per leaf, with a maximum width of 36″, or a maximum height of 54″. All cutouts must be 6″ from the edge of the door or any other cutouts and/or hardware preps. Louvres are not allowed in 20 minute doors.
• All doors meet or exceed N.W.W.D.A., I.S.1 and C.S.A. standards
