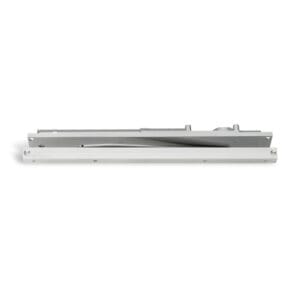

The LCN 2030/5030/6030 Series Pacer® Concealed Door Closers are designed for concealment in a narrow minimum 1-3/4” aluminum transom, meeting ANSI/BHMA A156.4 Grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A forged steel single-lever arm for the 2030 and 6030 Series, a forged steel double-lever arm for the 5030 Series and roller assembly for all three series provide smooth, quiet door control, with separate regulation of general closing speed and latching speed. The 5030 Series arm joints and shoe adapt to uneven trim. All three series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for all three series include a cast iron cylinder; a one-piece forged steel piston; a high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screw and all-weather fluid. Optional plated finishes accent the arm, fasteners and finish plate for all three series.

LCN 2030/5030/6030 Series Pacer Concealed Door Closers have the following features:

Body construction
Cast iron cylinder
Full-complement bearing
1-1/8” diameter piston

Quality and durability
All-weather fluid
Forged steel arm
15-year warranty

Installation
Designed to fit in a narrow header
2030 and 5030 Series have a handed design, 6030 Series has a non-handed design
2030 and 6030 Series have adjustable spring sizes 1-5, 5030 Series has adjustable spring sizes 1 and 3-6
