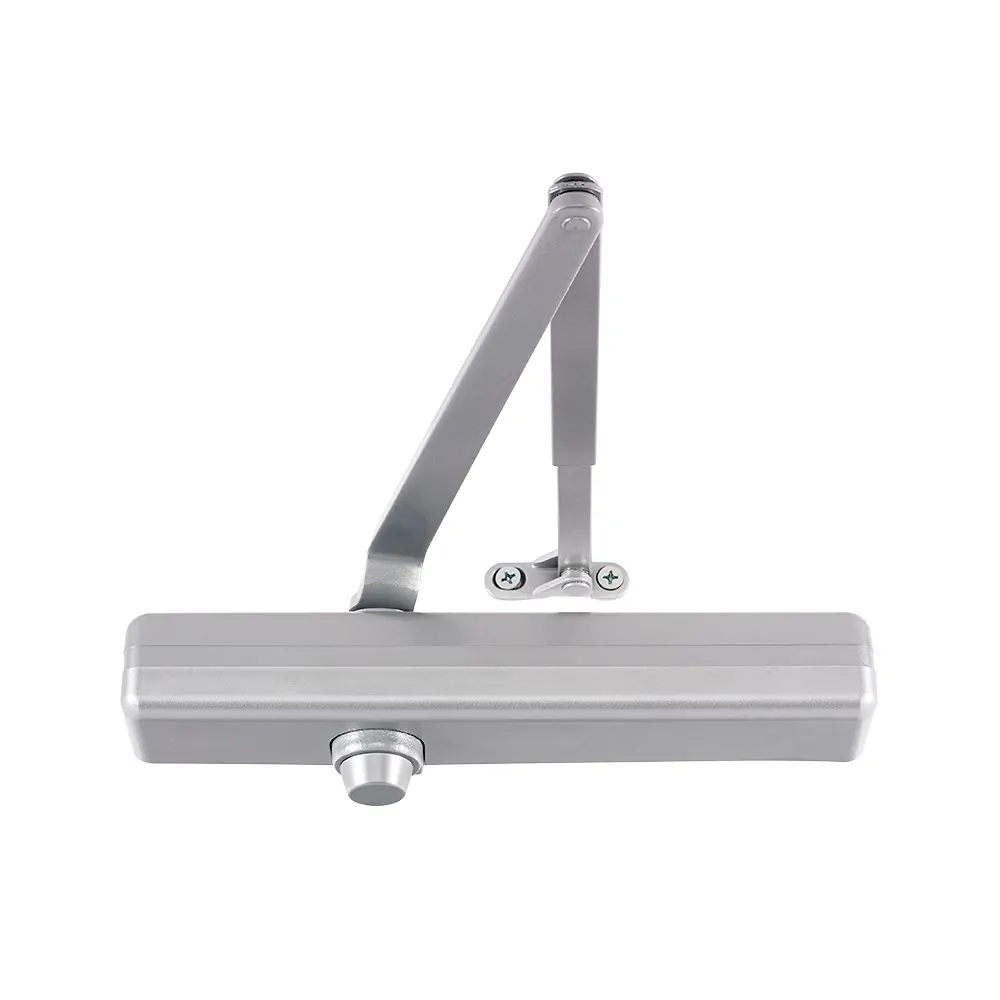

LCN 1460 Series Universal Medium-Duty Door Closers are designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements.

They install quickly and accurately and offer a variety of options. It is cUL and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty.

LCN 1460 Series features include a slim line plastic cover with optional plated finish on the cover, the arm and the fasteners. LCN peel-n-stick templates ensure quick and accurate installation, and the patented LCN Green Dial takes the guesswork out of spring power adjustments.

FEATURES & BENEFITS:

Body Construction

• Cast iron cylinder with full-complement bearing
• 1-1/4″ diameter piston
• Heat-treated steel pinion journal

Quality and Durability

• All-weather fluid
• LCN patented Green Dial spring power indicator
• 30-year warranty

Installation

• Universal non-handed
• Peel-n-stick template and standard slim line plastic cover
• Adjustable spring sizes 1-6

SPECIFICATION:

• Non-handed
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0″ and exterior doors to 4’0″
• Meets ADA requirements
• UL and cUL listed for self-closing doors without hold-open
• Tested and certified under ANSI/BHMA A156.4 Grade 1

DESIGNS & FINISHES:

• Powder coat finish offered in standard colors and/or a large selection of optional custom colors
• Standard slim line cover, optional full metal cover or Designer Series cover
• Optional SRI primer for installation in corrosive conditions is available with powder coat only

MOUNTING OPTIONS:

• Hinge (pull side)
• Top jamb (push side)
• Parallel arm (push side)

ARMS OPTIONS:

• Standard regular pull side
• Top jamb
