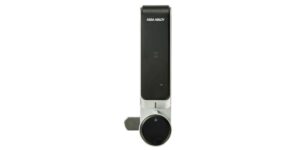

HES K20 Series Cabinet Lock

HES K20 Series Cabinet Lock

The battery powered K20 is the flexible, low cost cabinet lock solution for low to medium security applications with 75 lbs of holding force.


FCC Part 15 compliant

IC compliant

Holding Force: Static strength 75 lbs

Temperature: 32 to 122F [0 to 50C]

Humidity: 0 to 90% RH

Card Technology: MIFARE Classic™, MIFARE Ultralight™

Standard Features and Benefits

Stand-alone access control

No audit trail

13.56 MHz RFID card technology

LEDs indicate valid/invalid access

Supports 1 to 20 master credentials

Supports 1 to 20 user credentials

Aluminium die-cast construction


Installs on wood or metal cabinet drawers or doors 1 to 23 mm thick

SecuriCare three-year, no fault, no questions asked warranty

Optional Features

Supports 3rd party locking cams (i.e. hook)


30,000 cycles

(3) “AAA” alkaline batteries (not included)

External emergency power through micro USB.
