Features:
- R-16 urethane insulation for excellent thermal resistance.
- High structural resistance ensures panel rigidity.
- Insulation able to withstand Canadian winter conditions.
- Double-lip door jamb seal and panel seals.
- High-gauge anchor plates installed in every Garex door panel to ensure solid hinge attachment.
- Rigid industrial rails.
- 8 colors of paint finish, with the option of custom paint finish.
- Features the new Rot-Proof Extruded Polystyrene XPS End Block.
Door Dimensions:

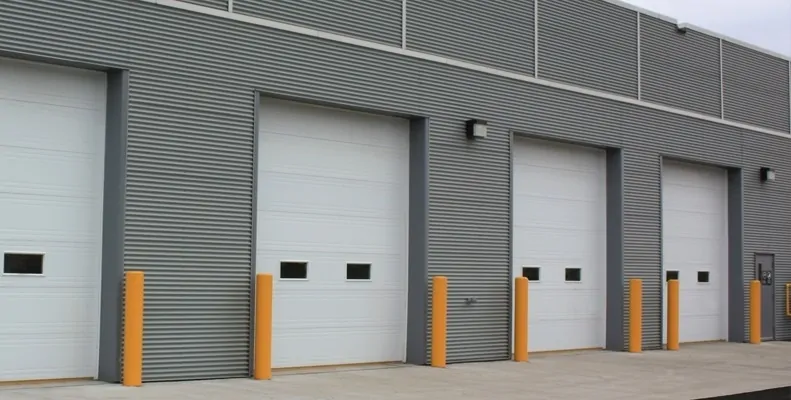

Garex can manufacture the GX-175-S steel garage doors up to 9.14 m (30 ft) wide and up to 10.67 m (32 ft) high.
Doors can be assembled with panels of 45, 53 and 60 cm (18, 21 or 24 inches).
Technical specs:
Steel
- Metal thickness 0.47 mm (0.0185 po)
- Isolation factor RSI 2.81 (R-16)
- Isolation density 40 kg/m3 ( 2.5 lbs./pi3 )
- Door Thickness 44.5 mm (1 3/4″)
OPERATOR CONFIGURATION
Reliable can configure a door operator to fit the available space. Standard High Ceiling Full Vertical Lift Limited Space Roof Slope.
HARDWARE
- All hardware is mounted in proportion to door weight and frequency of use.
- Standard Commercial Door – Under 500 lb. and operated fewer than 50 cycles/day.
- Sturdy Commercial Door – Under 650 lb. and operated more than 50 cycles/day.
- Industrial Door – Over 650 lb. and operated very frequently.
STANDARD CHARACTERISTICS
- 14- or 12-gauge steel tracks.
- 14- or 13-gauge steel hinges.
- Double hinges on doors over 12 feet wide.
- Crossbar installed for doors over 12 feet wide.
- 12-gauge steel spring supports.
- Rollers 2 or 3 inches in diameter with ball bearings.
