PoE Campus Access Control

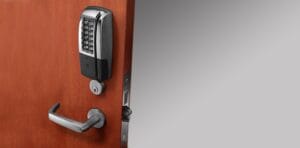

The Corbin Russwin Access 700® PIP1 intelligent Power over Ethernet (PoE) lockset offers online access control, using magstripe and PIN code technologies for customized access to campus facilities. These locks also support HID Mobile Access® powered by Seos® for use with mobile devices with Bluetooth® Smart and/or Near Field Communication (NFC). Using the facility’s Ethernet network, the Access 700® PIP1 provides full online access control with standard network cabling.

The Access 700® PIP1 also integrates all components into one device – ANSI Grade 1 quality lock or exit device, card reader, door position switch and Request-to-Exit sensor – and is available in mortise lock, cylindrical lock and exit device.

Access 700® PIP1 Lock Features and Benefits

Intelligent, integrated ANSI/BHMA Grade 1 lockset, available in cylindrical locks, mortise locks and exit devices

Complete lockset with on-board memory:
– 2,400 users supported per lock
– Audit trail for last 10,000 events

Available with:
– keypad and magnetic stripe (high coercivity)
– magnetic stripe only (high coercivity)
– key override

3-hour UL fire rating for maximum security and safety

ADA compliant

Reliable communication and power from one Ethernet (CAT5e or higher) cable Compliant with 802.3af specifications for Power over Ethernet

Monitoring capabilities are powered and connected to the system full-time

Intelligence built into the lock for local decision making

Utilizes network infrastructure for cost-effective installations; no proprietary equipment required

The Access 700® PIP1 requires certification through the ASSA ABLOY Authorized Channel Partner and Certified Integrator programs.
