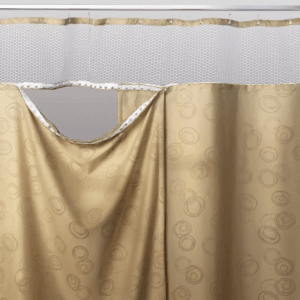

Construction Specialties’ Snap Lock Curtain is a modular cubicle curtain system designed for healthcare environments, offering a quick and efficient way to remove the fabric portion for regular washings. This innovative system simplifies inventory management, reduces the risk of HAIs, and eliminates the need for custom-sized curtains. With its snap-on design, curtains can be safely changed without the use of ladders, making it a practical and cost-effective solution for hospitals, clinics, and senior living facilities.

KEY FEATURES:

• Modular cubicle curtain system for easy fabric removal and laundering
• Snap system allows safe and quick curtain changes without ladders
• Fabric is opaque, washable, flame-retardant, and closely woven
• Antimicrobial treatment options available
• Color-coordinated nylon mesh for a cohesive look
• Double-needle interlock tailoring ensures durability and long lifecycle
• Interchangeable panels simplify inventory management
• Custom options available for unique facility needs

PRODUCT BENEFITS:

• Quick removal increases laundering frequency and reduces HAIs
• Saves money by eliminating the need for custom-sized curtains
• Improves infection control and patient safety
• Enhances operational efficiency with interchangeable panels
• Ideal for patient rooms, emergency rooms, isolation areas, and clinical spaces

SPECIFICATIONS:

• Material: 100% polyester
• Panel Width: Standard 69″ (1.8 m); custom sizes available
• Mesh Height: 0″–36″ (0–914.4 mm) based on ceiling height
• Curtain Height: Standard 69″ (1.8 m); custom sizing available
• Overlap Between Panels: 6¼” (158.8 mm)
• Mesh: ½” (12.7 mm) diagonal nylon mesh
• Top Hem: 1¼” (31.75 mm) standard, 2″ (50.8 mm) max
• Grommets: Rustproof, nickel-plated brass, spaced max 6″ (150 mm) o.c.
• Bottom & Side Hems: Minimum 1″ (25 mm) wide
• Options:
  • Snap Curtain: Each panel with its own mesh header
  • Snap Lock™ System: Continuous mesh header with overlapping panels
  • Custom Snap Curtain: Single mesh header with detachable panel up to 300″ (7.62 m) wide
• Certifications: HIPAA compliant, ARCADIS Ref #CO001551.0001
• Warranty: One-Year Manufacturer’s Warranty
