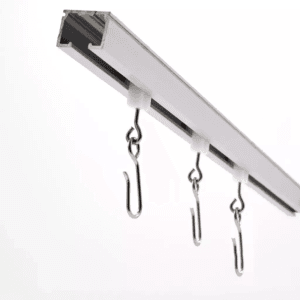

The Construction Specialties Narrowline Track is an anodized aluminum cubicle track designed for a modern, subtle appearance while delivering smooth, snag-free operation. Measuring 29/32″ wide by 11/16″ deep, this dual-channel extruded aluminum track is ideal for healthcare and commercial environments. Built to last, the Narrowline 6062 model offers flexibility for straight or radiused configurations and multiple mounting options.

KEY FEATURES:

• Manufactured from high-quality extruded aluminum 6063-T5
• Sleek, modern design for a more subtle appearance
• Smooth, snag-free operation for easy curtain movement
• Can be installed straight or with radius bends
• Surface or suspended mounting from grid or hard surface ceilings
• Customizable to meet a wide range of project requirements

PRODUCT BENEFITS:

• Durable construction ensures long-lasting performance
• Versatile installation for patient rooms, emergency rooms, isolation areas, and clinical spaces
• Modern aesthetic complements contemporary interiors
• Flexible design with multiple radius bend options
• Reliable performance backed by a one-year manufacturer’s warranty

SPECIFICATIONS:

• Dimensions: 29/32″ (23.02mm) wide x 11/16″ (17.5mm) high
• Material: Extruded aluminum alloy 6063-T5
• Thickness: 0.060″ (1.52mm)
• Radius Options: Continuous bends from 36″ (914.4mm) and up; radius bends of 12″, 18″, 24″, and 30″ available
• Mounting: Surface or suspended up to 20′ (6.09m) high
• Finish Options: Anodized aluminum, white powder coat, or custom powder coat
• Warranty: One-year manufacturer’s warranty
