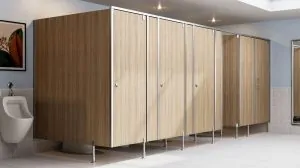

BOBRICK Evolve Cubicles

Bobrick’s Evolve Cubicles provide exceptional durability and European-style privacy without compromising budgets. Suitable for heavy traffic and standard use buildings.

Evolve and Evolve Max Cubicles help design professionals create resilient, European-style cubicle systems without compromising project budgets. Evolve’s fully anodized aluminum framing system provides durability and privacy. For ADA compartments without room to expand the depth and width, 9″ floor clearance can be achieved. When the two floor clearances are combined, the components will be aligned at the top of the headrail.

STANDARD FEATURES:

1/2″ Compact Grade Laminate (CGL) doors and fascia panels
ASTM E 84 Fire Rating: Class A or B, depending on the finish manufacturer
Overhead-braced, fully anodized aluminum framing system provides durability
Built-in European-style privacy eliminates sightlines
72″ single-piece divider panels

APPLICATIONS:

Shopping centers
Stadia and arenas
Airports and convention centers
Higher education
Class B offices
Locker rooms

STANDARD HARDWARE:

Evolve’s anodized aluminum hardware and fittings provide built-in privacy and modern function to meet particular project requirements.

Evolve Standard Height Cubicles are floor-anchored, overhead-braced installations with 9″ pedestals. The soft-close spring loaded closing mechanism is incorporated into the pivot foot.

Evolve Max Cubicles are overhead-braced installations with soft-close mechanisms incorporated into the headrail. Patent pending. Evolve Max’s construction makes it ideal for shower applications.

Soft door closure mechanism
Aluminum hook and occupancy indicator latch with emergency access release
Closing latch, with a sacrificial hard nylon shear tip, locks into the frame for added strength

LEAD TIME:

The lead time estimates apply only to standard color selection.

Compact Grade Laminate: Lead Time: 6-7 weeks

HEIGHT OPTIONS:

Standard:
- Door Height: 72″
- Panel Height: 72″
- Floor Clearance: 9″

Max:
- Door Height: 79 5/8″
- Panel Height: 80″
- Floor Clearance: 1″

COLORS, PATTERNS, & WOODGRAINS:

Evolve Cubicles are available in a wide range of colors, patterns and woodgrains.

Standard color by ABET LAMINATI allows for single panel width up to 72″, eliminating use of additional hardware. Meets Class A fire rating without upcharge. *Wilsonart® SOLICOR™ is a specialty laminate with a solid color core to match the surface. Color upcharge premium applies.

Compact Grade Laminate (CGL) Standard Colors & Patterns:

Single Piece Panels Available Up To 5’: Satin Stainless with Dove Grey Core, Satin Stainless with Black Core, White, Grey Grit, Pewter Mesh, Citadel Warp, Navy Grafix, Graphite Grafix, Black Stone, and Black

*Wilsonart® SOLICOR™ is a specialty laminate with a solid color core to match the surface. Color upcharge premium applies.

Single Piece Panels Available Up To 6’**: Ice White, Sand, Light Grey, Pearl Grey, Brushed Aluminum, Charcoal, Silvretta, and Cello

Additional Colors: Solid Color CGL – Wilsonart® Solicor™ Colors & Patterns*: Designer White, Dove Grey, Khaki Brown, Natural Almond, Silver Oak Ply, Silver Alchemy, High Line, Park Elm, Field Elm, Flax Linen, Pressed Linen, Pearl Soapstone, Phantom Ecru, Tan Soapstone, and Calacatta Oro

Note: Non-stock; made to order, lead times and color upcharge premiums apply. Samples can be requested from the manufacturer.

*Wilsonart® SOLICOR™ is a specialty laminate with a solid color core to match the surface. Color upcharge premium applies. **Standard color by ABET LAMINATI and FUNDERMAX® allows for single panel width up to 72”, eliminating use of additional hardware. Meets Class A fire rating without upcharge. Hundreds of additional CGL colors are available from our partners; additional lead time will apply. Please consult with ABET LAMINATI®, ARBORITE®, FORMICA®, Wilsonart® or FUNDERMAX for color options. Non-stock Abet Laminati or FUNDERMAX colors carry a significant lead time of 10-14 weeks. ABET LAMINATI is a trademark of ABET Inc. and ABET LAMINATI S.p.A. ARBORITE and Wilsonart are registered trademarks of Wilsonart Engineered Surfaces and Wilsonart International, Inc. SOLICOR is a trademark of Wilsonart Engineered Surfaces and Wilsonart International, Inc. FORMICA and the FORMICA Anvil logo are registered trademarks of The Diller Corporation. © 2015 The Diller Corporation. FUNDERMAX is a registered trademark of FUNDERMAX GmbH.

URINAL SCREENS: Add Evolve floor-anchored urinal screens, with finishes and hardware to match your cubicle design.
