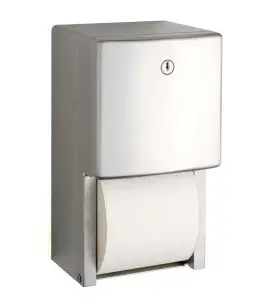

Bobrick’s ConturaSeries® Surface-Mounted Multi-Roll Toilet Tissue Dispenser is designed for durability, security, and compatibility with Bobrick ConturaSeries® washroom accessories. Made from Type-304 stainless steel with an all-welded construction, the multi-roll toilet tissue dispenser unit features a seamless, one-piece drawn door with a satin finish. The door’s radius corners complement the cabinet’s top corners and match the aesthetic of other ConturaSeries products. A flush tumbler lock, keyed like other Bobrick accessories, secures the door to the cabinet with two rivets. The dispenser accommodates two standard-core toilet tissue rolls up to 5-1/4″ (133mm) in diameter (1800 sheets), with an automatic roll transfer system that allows the extra roll to drop into place when the bottom roll is depleted. Heavy-duty, theft-resistant molded ABS spindles remain locked in place until the door is unlocked, ensuring security and preventing unauthorized removal.

FEATURES:

• Type-304 stainless steel cabinet, door, and dispensing mechanism with an all-welded construction
• Seamless, one-piece drawn door with a satin finish
• Radius corners on the door and cabinet for a consistent design with ConturaSeries accessories
• Flush tumbler lock, keyed like other Bobrick washroom accessories
• Two heavy-duty, one-piece molded ABS spindles with theft-resistant design
• Holds two standard-core rolls up to 5-1/4″ (133mm) diameter (1800 sheets)
• Automatic roll transfer when the bottom roll is depleted
• Surface-mounted installation for easy setup and accessibility

BENEFITS:

• Durable stainless steel construction ensures long-lasting performance and resistance to corrosion
• Theft-resistant spindles enhance security by preventing unauthorized removal
• Automatic roll transfer minimizes maintenance and ensures continuous availability
• Seamless, rounded design improves aesthetics and complements ConturaSeries washroom accessories
• Flush tumbler lock provides security while maintaining a sleek, modern appearance
• ADA-compliant when installed at the recommended height

SPECIFICATIONS:

• Material: Type-304 stainless steel with satin finish
• Mounting: Surface-mounted
• Tissue Type: Standard roll – double
• Dimensions: 6 1/16″ W x 11″ H x 5 15/16″ D (155 x 280 x 150mm)
• Accessibility: ADA-compliant
