ASI Piatto™ Completely Recessed Phenolic Automatic Roll Paper Towel Dispenser

Product Details

ASI Piatto™ Completely Recessed Phenolic Automatic Roll Paper Towel Dispenser – AC Power

ASI’s Piatto™ Completely Recessed Phenolic Automatic Roll Paper Towel Dispenser – AC Power is thoughtfully designed to fit into the plane of the washroom wall, highlighting the seamless design that defines Piatto™.

PRODUCT OVERVIEW:

The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed, giving the Piatto™ Collection its minimalist appeal.
Proximity sensing no-touch unit holds and dispenses one 8″ [Ø203] diameter x 8″ wide [203] standard towel roll standard towel roll up to 800 ft. (244m) long and one 8″ wide [203] stub roll up to 4″ diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged.
The roll paper towel dispenser is powered by an AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied) using 110- 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation, the unit feeds out a length of towel selected by the owner by setting length, delay and paper saver switches.

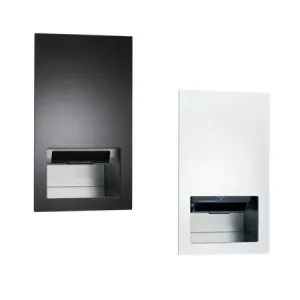

The door style options include Matte Black Phenolic and White Phenolic.

KEY FEATURES:

Unique Design: The Piatto™ collection is designed to be coplanar to the wall – an ASI exclusive.
Elevated Style, A New Choice: Phenolic doors in matte black or white were created to accentuate your washroom design.
Innovative Hinges: 3-way, adjustable hinges allow flexibility in the field and are concealed along with all other hardware.
Stands Apart By Blending In: A combination of technology and design ensures a perfect fit adding to your design by not detracting from it.

SPECIFICATIONS:

All metal parts are made of Type 304 Stainless Steel
All hardware, including the latch, is concealed
Automatic – AC Operated – “No Touch”
Fits with virtually no gap into a finished wall opening

TECHNICAL DATA:

Dimensions: 16-1/16″ [408] x 28″ [711] H x 9-13/16″ [248] D
Construction: Type 304 Stainless Steel Frame w/ Black or White Phenolic Door; Furniture style hinges are field adjustable to ensure perfect fit
Power: 110-240V AC
Operation: Automatic “No-Touch”
Mounting: Concealed Mounting
