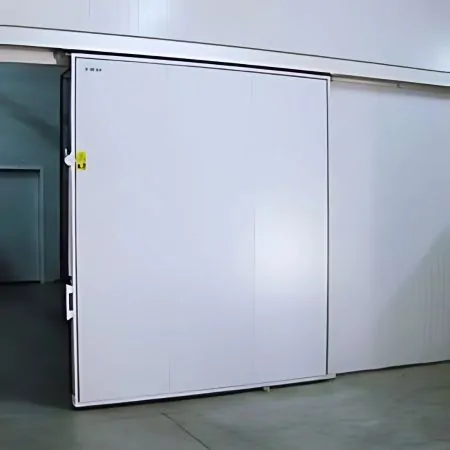

AMBICO’s Bullet Resistant Sliding Steel Door & Frame Assemblies provide unparalleled protection against ballistic threats while retaining the appearance of traditional standard steel sliding doors. Designed for enhanced security without compromising on aesthetics, these sliding doors offer a perfect blend of style and bulletproof performance.

AMBICO’s Bullet Resistant Sliding Steel Doors are ideal for applications where both security and ease of access are paramount.

PRODUCT DETAILS:

AMBICO’s Bullet Resistant Sliding Steel Door & Frame Assemblies combine exceptional security with smooth sliding functionality. Here are the key product details:

• Bulletproof Performance: Our sliding doors are engineered to withstand ballistic attacks, providing a secure barrier against potential threats.
• Appearance and Style: Designed to resemble traditional standard steel sliding doors, our assemblies seamlessly integrate into any architectural style or environment.
• UL Levels One through Ten: Our sliding doors are available to meet UL 752 levels 1 through 10, offering varying levels of protection against different firearms and munitions.
• Complete Hardware Package: Furnished with all necessary sliding door hardware components, our assemblies are ready for installation. Electric operators are included when required for automated operation.
• Vision Glass Option: The option to add vision glass lite(s) is available, allowing natural light to enter while maintaining security. All glass and glazing are included as part of the assembly.
• Customizable Sizes: We offer custom sizes to suit unique project demands, ensuring a perfect fit for your specific requirements.
• Tested and Certified: Our Bullet Resistant Sliding Steel Door & Frame Assemblies undergo rigorous testing and certification processes to meet industry standards for ballistic protection.

USE CASES:

AMBICO’s Bullet Resistant Sliding Steel Door & Frame Assemblies find valuable applications in a variety of settings. Here are some key use cases:

• High-Security Facilities: Secure sensitive areas in government buildings, military installations, and research facilities where bulletproof protection is crucial.
• Commercial and Retail Spaces: Enhance security in financial institutions, jewelry stores, and high-value retail establishments without compromising customer accessibility and aesthetics.
• Public Transportation Hubs: Provide robust security in airports, train stations, and bus terminals, safeguarding passengers and infrastructure against potential threats.

PRODUCT SPECIFICATIONS:

Construction:

• Manufactured from galvanized sheet steel to ASTM A653/A653M standards
• Exterior finish: ZF75 (A25) for enhanced corrosion resistance
• Interior finish: ZF001 (A01)
• Reinforcement channels: CSA G40.20/G40.21, ZF75 (A25)
• Structural steel components: ASTM A36
• Factory-primed with zinc phosphate, rust-inhibitive coating
• Designed to accept heavy-duty builders hardware (UL Levels 1–8)
• For Levels 9 and 10, factory-supplied reinforced hinges provided
• Paired openings available with overlapping astragal or bullet-resistant mullion
• Fire-rated mullion included for rated assemblies

Performance & Certification:

• Rated to UL 752 Levels 1–10 for bullet resistance
• Withstands threats from handguns (.38mm) to military-grade assault rifles (.50 caliber)
• Tested and certified for ballistic resistance under UL 752 Standard for Bullet-Resisting Equipment
• Smooth sliding operation with quiet performance
• Customizable to suit unique architectural or operational requirements

Glazing Options:

• Optional bullet-resistant vision glass lites available
• Factory-installed glazing rated to the same ballistic level as the door assembly
• Allows natural light without compromising security

Hardware & Operation:

• Complete hardware package included for sliding operation
• Electric operator (220V, 3-phase) with worm-gear reducer and electromechanical brake
• Control panel with integrated piggyback system, reversing starters, and thermal relays
• Drive system with dual roller chains and galvanized cables for smooth, controlled motion
• Door speed: 8″–10″ per second with soft start and stop
• Fail-safe system with automatic power cutoff upon malfunction

Insulation & Energy Efficiency:

• Core insulation with a minimum U-value of 0.18 for energy efficiency and climate control
• Maintains both security and thermal performance standards
