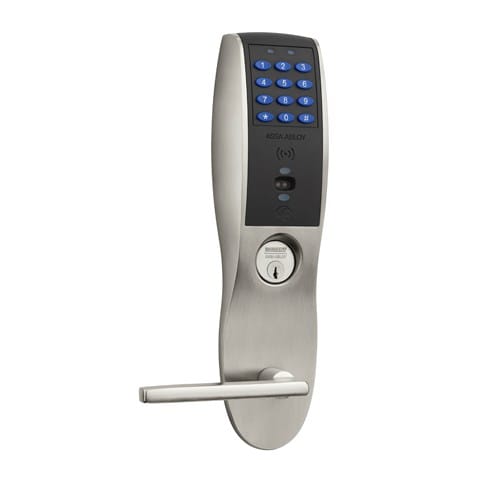

Sargent Aperio PR100 Series

Sargent Aperio PR100 Series

The SARGENT PR100 lock with Aperio® Technology makes it easy and cost-effective to bring access control to additional openings. It uses local wireless communication between the lock and an Aperio hub to connect to an access control system, eliminating the greatest cost and inconvenience of traditional access control – the wiring at the door. The PR100 utilizes HID® 125 kHz proximity or 13.56 MHz iCLASS® technology and is available in mortise lock, cylindrical lock or exit device configurations. All technology features are supported by the physical security of SARGENT ANSI/BHMA Grade 1 hardware.

The integrated reader and short range wireless radio simplifies installation and lowers cost.


Enhances security with keypad for dual-factor authentication

Quick, easy deployment eliminates cost and inconvenience

Provides real-time door status monitoring

Features & Benefits

Integrated reader, monitoring and short range wireless radio

  • Simplifies installation and reduces material costs

Minimal field configuration

  • Quick, easy wireless deployment that eliminates the cost and inconvenience of complex wireless site surveys

Fully-encrypted AES 128 wireless communication between PR100 and hub

  • High security standardized communications ensures data security

Real-time door status monitoring with deadbolt, DPS, low battery, REX, and tamper signals

  • Ability to respond immediately to situations at opening

ANSI/BHMA Grade 1 hardware, available in: 10 Line Bored Lock; 8200 Series Mortise Lock; 80 Series Exit Device

  • Flexibility to support a variety of openings; industry leading Grade 1 hardware offers the highest degree of physical security available in access control locks

HID 125 kHz or 13.56 MHz iCLASS (full authentication, all formats) contactless credentials

  • Integrates easily with existing HID credential systems

Utilizes Aperio global technology

  • Ideal for global companies who wish to deploy a standard infrastructure across multi-national locations

Uses six AA batteries

  • Easy, cost-effective deployment and maintenance

Keypad option available

  • Two-factor authentication offers enhanced security.
