Features and Performance:

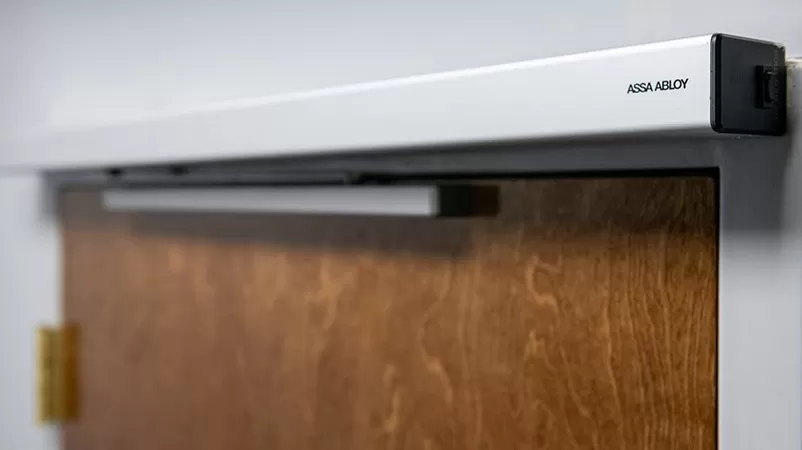

- Operator: electro-mechanical, non-handed operator
- ANSI Compliance: Low energy (ANSI A156.19)
- Door Weight: up to 200 pounds per operator
- Door Size: up to 48”
- Manual Push Force: adjustable from 5 lbf – 15 lbf
- Hold Open Time: adjustable from 2 seconds to 6 hours
- Ratchet Function
- Electric strike integration (no external relays required)
- Low voltage operator that is powered via an external 24vdc power supply.
Benefits:
- Touch-free Sleek access solution:
- Wave plate compatible
- Limits contact with germs
- Perfect for bathroom, office, medical and assisted living facility doors
Sleek Design:
- Perfect for limited overhead space
- Blends in with door frame Push or pull configurations
- Clear or dark bronze finishes
Smart Access:
- Expedites setup process
- Door functions controlled by app Apple
- App Store & Google Play Store availability
Expert Installation:
- Retrofit existing manual doors
- Quick, professional installation
- No electrician required
- Mobile app for installation walkthrough
Aesthetics:
- Aesthetically pleasing, low profile appearance: 1-7/8” high by 2-3/8” deep
- 39 1/2” header
- Finishes: clear anodized or bronze finish
- Blends in with door frames
- Can fit in spaces where overhead space is limited
Color Options:
Arm Options:
Authorities:
- UL approved - UL325 UL/CUL
- UL Listed Fire Door Operator - UL10C
- ANSI A156.19
Sensor Packages:
- Activation: wave plates or push plates per your selection
- Safety devices: Optional door mounted presence sensors (DMPS) are available for approach side only
Operation:
- Wave plate or push plate activation (ANSI A156.19)
- Push and go feature allowing door to open automatically when operator senses the manual movement of door (ANSI A156.19)
- Power assist open – Compensates for heavier doors and spring weight (ANSI A156.19)
- Internal, push to open, push to close (i.e., ratchet relay)
- Speed controlled Extended Closing Torque (ECT) to provide power assist close with increased latching torque without increasing speed
- Loss of Power: The operator controls the door closing and acts as a manual door with optional lock kick.
- Torque Limiting: if positive air pressure condition is removed, operator compensates accordingly and will not increase in speed
Electric Lock Management:
- Operator pulls door closed before opening, releasing stack pressure on the electric latch hardware
- Electric Lock Output: selectable: 12V DC, max. 1200 mA or 24 V DC, max. 600 mA
App & Switch Controls:
- Off / Closed (App & Switch) The door is closed. The door cannot be opened with the inner / outer wall or jamb-mounted contact switches. The door is locked if an electromechanical locking device has been fitted. Key Impulse for card readers is still active.
- Exit Passage from inside only. The door is normally locked if an electromechanical locking device has been fitted. The door can only be opened with the inner wall or jamb-mounted contact switches (if fitted).
- Auto (App & Switch) The door can be opened with the inner / outer wall or jamb-mounted contact switches and key impluse.
- Hold / Parking (App & Switch) The door can be held at any position when opening or closing.
- Wireless controlling The door can be controlled by the app on a smartphone or a tablet.
- Log Events and errors can be displayed.
- Extended closing torque The motor will increase the closing torque when the door is closed or during closing. If the parameter is set to "0", the door will close with normal spring power.
- Power assist The motor will give/increase power assist when the door is opened manually. If the parameter is set to "Off", the door will give no power assist.
- Push and go When the door is manually pushed it will perform an open / close Pull: cycle. Push and go is not active in mode "Off / Closed".
